Double Open Euro Door Lock Cylinder with 3 Keys
The double open euro door lock cylinder, featuring keyholes on both sides ,is usually installed in double doors. It requires both keys to be inserted simultaneously for its operation. Moreover, either the interior side or the exterior side can be locked independently. In contrast to the traditional single cylinder, it boasts enhanced anti-snap and anti-bump capabilities, making it ideal for high-security scenarios demanding two-way anti-theft protection (e.g., residential front doors, commercial building entrances).
- Double Keyed Operation Design
Equipped with dual keyholes for independent left/right side locking, enabling versatile operation from both directions. - Euro Standardized Structure
Adopts Euro Profile standard dimensions (lock body backset distance: 60-70mm) with modular interfaces compatible with European mainstream security doors, fire-rated doors, and double-leaf doors. - High-Security Performance
Features a reinforced dual-directional anti-theft protection structure, providing both outdoor resistance against prying/impact and indoor protection against unauthorized entry. - Various Customization Options
Offers multi-dimensional customization including cylinder material, finishes, lengths, and personalized key configurations. - Superior Durability
Constructed with corrosion-resistant materials (zinc alloy, aluminum, brass, or stainless steel) ensuring long-term structural integrity.
Double Open Euro Door Lock Cylinder Description
The double open euro door lock cylinder is ideal for anti-theft doors and front entrance doors. It features keyholes on both sides that require two keys to be inserted simultaneously to unlock (anti-misoperation design). It also enables independent locking from either the interior or exterior. This design significantly enhances two-way anti-theft protection: once locked from the inside, the outdoor key cannot force the door open; it features excellent outdoor anti-prying and anti-collision performance. Compliant with the European Grade C cylinder standard, the exterior incorporates mushroom-shaped pins and anti-pull steel balls to effectively defend against “lock bumping” and prying attacks. The internal structure uses multi-row pins combined with levers, connected to top and bottom door frames via vertical hooks to form a 3D locking system, increasing impact resistance by 30%.
Lomekin’s double open euro door lock cylinder complies with standard European profile dimensions, and its universal interface design enables convenient installation by directly replacing traditional cylinders or allowing upgrades without modifying the door body. It also adapts to synchronous locking structures for double-leaf doors, with cylinder lengths matching common door thicknesses (standard range: 70–90mm), and is compatible with over 90% of double-door and mainstream European anti-theft/fireproof doors.
As a direct lock cylinder manufacturer, Lomekin provides extensive customization capabilities to fulfill diverse customer requirements, covering cylinder materials, surface finishes, dimensional specifications, and tailored key configurations. Materials often include corrosion-resistant options (zinc alloy, aluminum, brass, or stainless steel), with premium surface treatments such as gold plating, zinc plating, chrome plating, nickel plating, etc. For length specifications, both standard symmetrical types (total lengths: 70mm, 80mm, 90mm, 100mm; split lengths: 35/35, 40/40, 45/45, 50/50) and asymmetrical types (total lengths: 85mm, 95mm, 110mm; split lengths: 30/55 or 55/30, 35/60 or 60/35, 40/70 or 70/40) can be produced. Additionally, personalized key systems of 3–5 keys per set (e.g., 2 regular + 1 emergency, 3 regular + 2 emergency) directly address common challenges like key shortages and the high costs of procuring additional keys, delivering practical and cost-effective solutions for end-users.
Double Open Euro Door Lock Cylinder Technical Data Sheet
| Item Code | LOM3535PS001 |
| Finish | GP/SN/AB/CP/BC/MB/SC/PB,etc |
| Cylinder Type | Double Open Euro Lock Cylinder |
| Materia-Shell | Brass,Zinc Alloy,Aluminum |
| Material-Inner Core | Brass,Zinc Alloy,Aluminum |
| Material-Key | Iron |

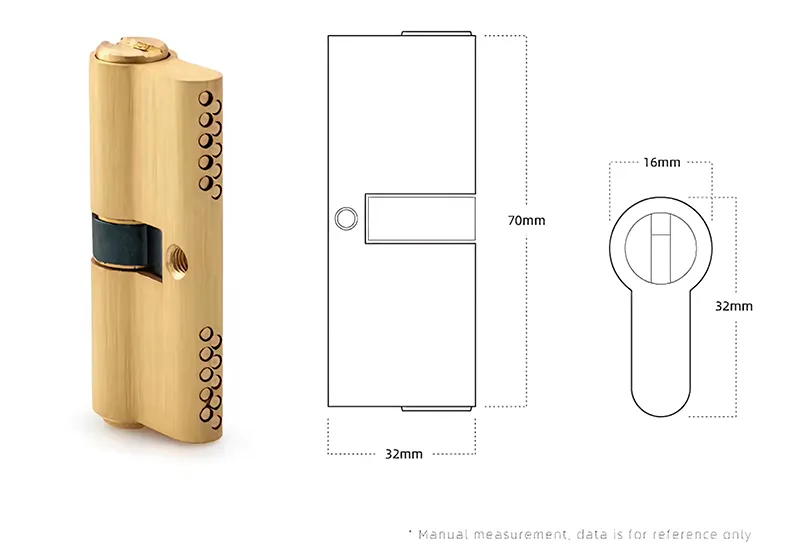

| Combined Cylinder Size | 60/70/80/85/90/100*32MM,etc |
| Cylinder Pins | 5-Pin/6-Pin/10-Pin,etc |
| Packing | Carton Box/Opp Bag/Customized Box |
| Oem/Odm | Accepted |
| General Security | High Security,Anti-Snap,Anti-Bump,Anti-Pick,Anti-Drill |
| Brand Certification | EN1303 Certified |
Double Open Euro Door Lock Cylinder Applications
- Residential Scenarios:Suitable for double-leaf doors, villa entrance doors, etc. It features dual capabilities: convenient access and secure anti-locking.
- Anti-accidental Locking Function: The exterior of the lock cylinder can be locked via key, while the interior remains operable at all times, preventing sliding doors from accidentally locking and trapping occupants. Two-Way Anti-Theft Design: Even if the exterior of the lock cylinder is damaged, the interior structure provides continuous protection against forced entry.
- Commercial Scenarios: Applicable to office building glass doors, bank vault doors, hotel/homestay guest room doors, etc. It balances anti-drilling/anti-prying performance with high durability. The lock cylinder is engineered to withstand over 50 daily opening/closing cycles, meeting long-term usage demands in commercial environments. It complies with EN 1627 anti-theft certification and fire escape regulations, ensuring compliance with safety management standards.
- Special Scenarios (Fire Doors):In emergencies, fire doors enable quick interior unlocking with a single key, strictly adhering to the EN 1634 fire protection standard to guarantee safe evacuation during fire incidents.
